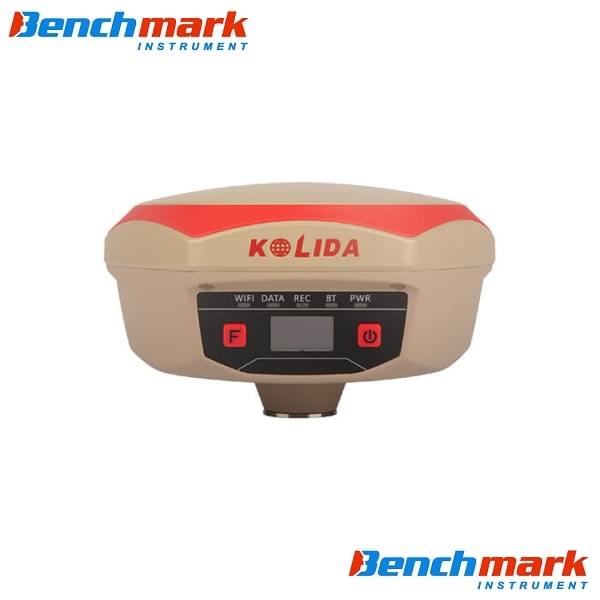

Kolida K20s RTK GNSS
More Advanced GNSS Engine
Featuring a powerful 692 channels GNSS mainboard inside, K20s can track and process all the existed satellite constellations. With the utility of the BEIDOU (COMPASS) signal, the data acquisition speed and GNSS signal stability are greatly improved from old generation technology.
10 Innovations to Increase Efficiency
More than 10 programs or functions were re-designed to make your workflow simpler and smoother, let you to work easier and comfortably, and help you to get more reliable working results.
More Durable and Rugged
K20s is fully sealed, has a IP 68 level proof. The built-in battery has a 10,000 mAh capacity and can work 8 to 14 hours as RTK rover, with only one recharge.
Work Safer and Easier
Thanks to the inertial measurement technology, K20s allow users to do a tilt survey with a maximum tilt angle of 60 °. Centering is not a must, so surveyors can stay in safe position when they measure on the motorway and don’t need to step into water.
Fast and accurate
Not like tilt sensor, Inertial Measurement Unit is no more affected by the earth’s magnetic field and requires no correction. It can be activated and start working within only few seconds, this fast positioning will increase measurement speed by over 30%.
The combination algorithm of IMU + GNSS can get fixed solution faster and keep measurement results more stable, accuracy is down to 2cm.
Measure where others can’t
Corner of wall? Points underneath pipe? Points occupied by car? These targets are no more accessible..
Long Range Radio Link
SDL400 built-in radio can send signal as far as 7 km in urban area, 8 km in suburban. The maximum coverage is up to 200 sq.km, suitable to have multiple rovers work simultaneously.
Barrier-Free Measurement
In a difficult environment, you may lost connection with base station or VRS network. Don’t be disappointed, you can choose from 3 creative work modes to continue surveying without interruption. (Repeater/ Router/ Mobile Refenrence Station)
Anti-interference
SDL400 built-in radio features anti-interference capability, so K20s can work close to power plant, transformer substation, mobile signal tower and other interference sources.
Practical Functions
K20s employs Linux system, it helps surveyors to accomplish their missions easier, faster and more accurate by delivering exceptional quality and innovative features.
Kolida K20s is upgrade version of Kolida K5 IMU.
For more information please Kolida Authorized Distributor TS Geosystems or Kolida Instrument.
