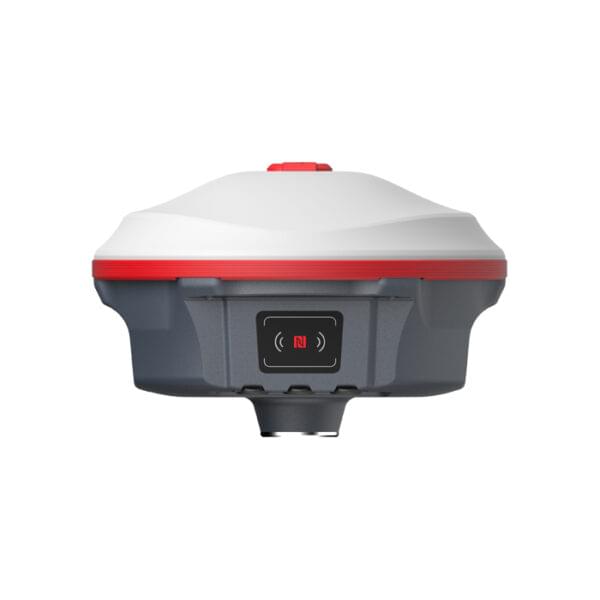

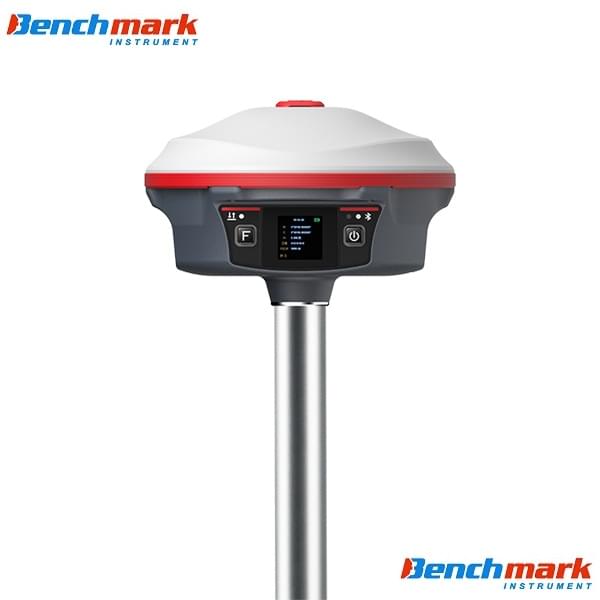

Kolida K30 GNSS
Kolida K30 GNSS More Channels are Available
The integrated advanced 1598-channel GNSS technology helps K30 to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.
More Freedom to Operate
Kolida K30 GNSS has a colorful touch screen, users are able to operate GNSS receiver like their smart phone. Using both of touch screen and key buttons will make your workflow easier and faster.
Down to 4-10 cm Positioning by L-band
Thanks to the newly developed BDS correction service, Kolida K30 GNSS is able to receive B2b signal via L-band, and perform a single point positioning precisely without base station. It is a great help to surveyors who work in particularly difficult areas. This service is available in 2022 in Asian-Pacific region.
New Radio, Farlink Tech
Farlink technology is developed to send large number of data and avoid data loss. This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).
Working Longer, Stop Less
Thanks to the low consumption operation system design, K30 can work up to 10 hours in RTK base mode and up to 25 hours in rover mode, up to 27 hours in static mode. (Environment temperature is 25℃)
Kolida K30 GNSS can be recharged by Type-C USB connector.
Constantly Upgraded Inertial Measurement
KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it… Tilt angle is up to 60 degrees, accuracy is down to 2-3cm (when tilt angle is within 30°), 5cm (tilt angle within 60°)
