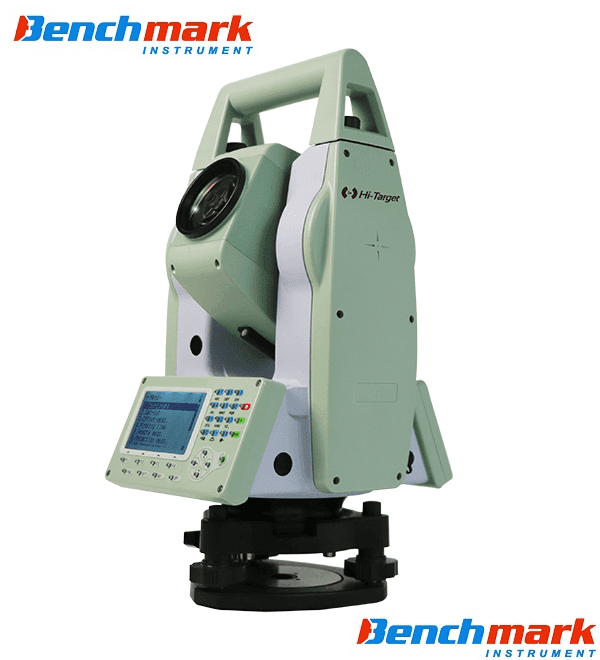

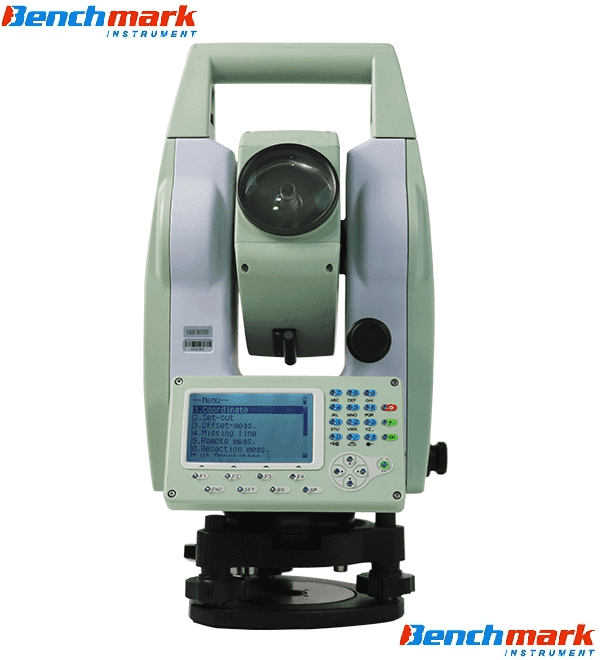

Hi Target HTS-220R Total Station

  • Total station working in the dark
  • Dual-Aixs compensator
  • Reflector less 600m measuring range
  • Accessible for real-time diagnosis
  • Large Memory
  • Trouble-free operation
  • Long-distance measurement
  • Easy Surveying programs
  • Long time operation
Category Tag
Share this :
Our Promise

Buy With Confdience

Share this :



Dual-axis Compensation

The HTs-220/R is configured with an advanced dual-axis compensator for auto error elimination and auto accuracy compensation HI-TARGET Total Station HTS-220R.

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS-220/R is turned on. The azimuth information won’t be missed even the HTS-220R is power-off unexpectedly.

High-Performance MCU

The STM32 MCU based on ARM Cortex(tm)-M processor enables the HTS-220R has extra high processing speed and low-power consumption.


The Bluetooth wireless technology makes HTS-220R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCe is full compatible with the HTS-220R.

Data Storage

Diversified data transfer options such as SD card, USB pen drive, mini-B interface.


The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece

Support diagonal eyepiece for observations at steep line of sight.

Calibration Software

The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software

The proprietary HI-TARGET data transfer software supports different type of output data formant, which can be used in AutoCAD or other brands’ post processing software.


Sokkia Software Total Station, 2” Angle Accuracy, 1” Display Reading, Reflectorless Range 600m, Dual side LCD display with alpha numeric keys Distance Range with Single Prism: 3000 meter, Distance Range with Triple Prisms: 6000m, Distance Dual Axis Compensator, Alpha Numeric Key Board, Internal Memory 20,000 points, Plug-in Memory SD Card Supported, Mini USB Slot, Dust and water protection: IP65 Operating Temperature: -20°C to +50°C, Operating time with one battery 16 hours (Approx.) Laser Plummet, & Charger with standard accessories.
